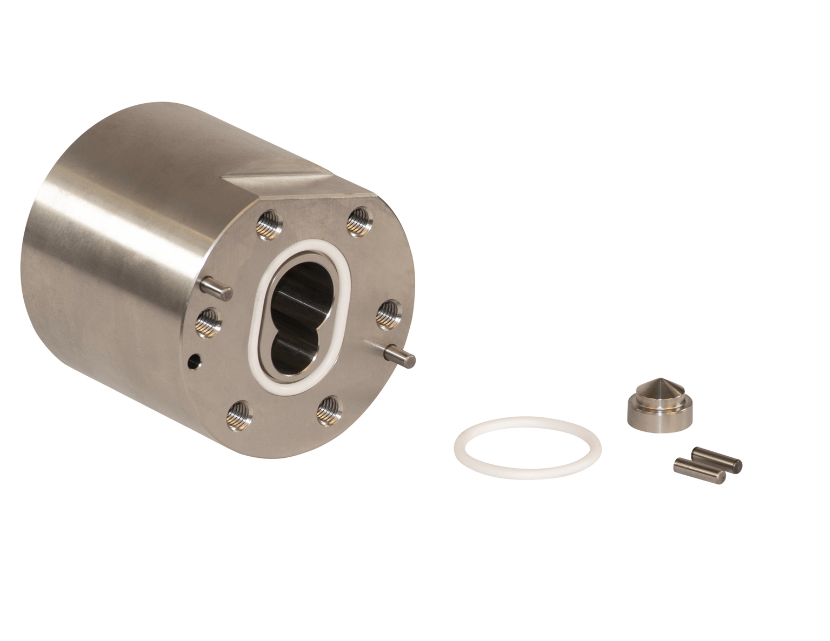

It’s a repair kit containing the core measuring element of a helical gear flow meter along with replacement parts like seals and possibly a specialized nozzle or component. This kit contains critical internal components, suggesting that the main body shown is likely the measuring chamber of the flow meter, and the smaller parts are replacements for wear-prone elements.

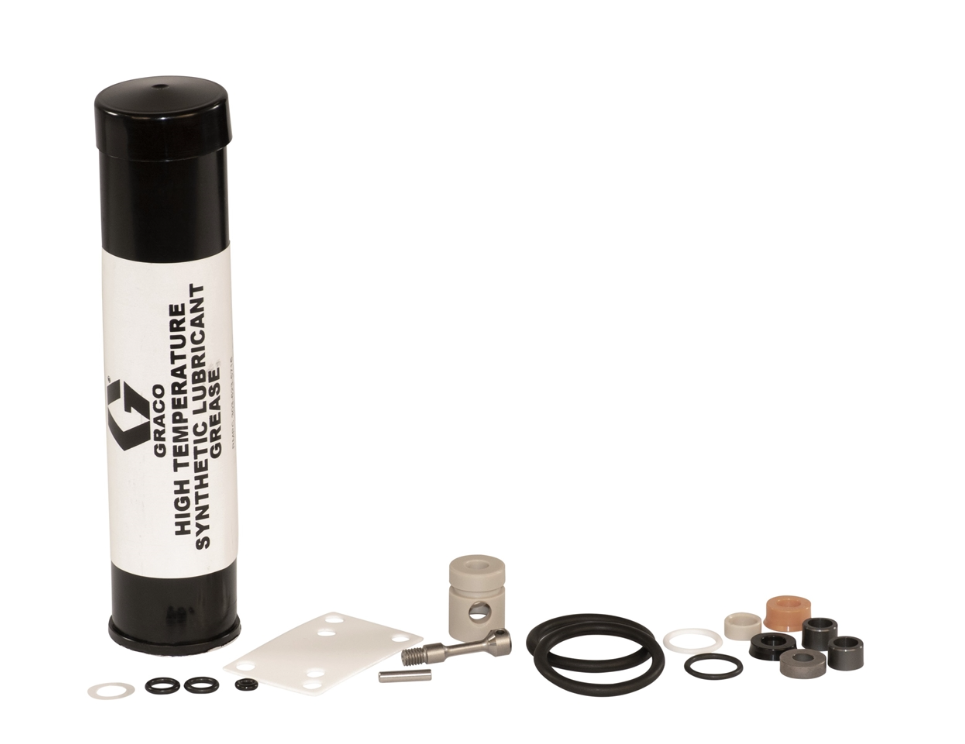

The kit is clearly designed for a Graco 1K Valve. “1K” typically refers to “one-component” material.
meaning the valve handles a single fluid (like paint, adhesive, sealant, oil, etc.) that doesn’t require mixing with another material before dispensing or processing. Graco is renowned for its equipment in fluid handling, particularly for spraying and dispensing applications.

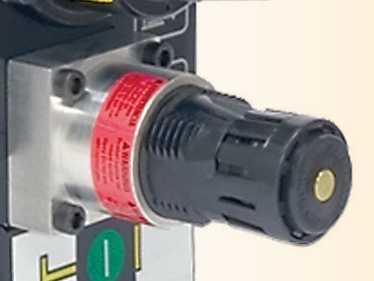

It’s a pressure regulator, a device designed to maintain a constant output pressure from a fluid source, regardless of fluctuations in the input pressure or changes in downstream flow requirements. In this specific context, it regulates the pressure supplied to a RAM, controlling its force and speed.
specifically designed to direct the flow of a fluid (likely hydraulic fluid or air) to control the movement of a “RAM” in an industrial context. It’s a directional control valve with a manual lever actuator. This type of valve is used to start, stop, or change the direction of fluid flow in a hydraulic or pneumatic system, which in turn controls the movement of an actuator, such as a hydraulic cylinder (often referred to as a “RAM”).

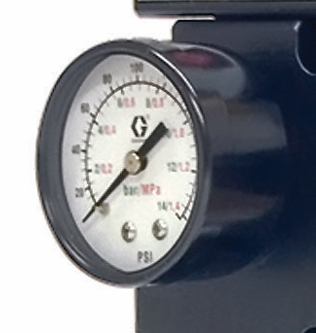

A pressure gauge, which is a device used to measure and display the pressure of a fluid (liquid or gas) in a system. It’s a circular dial-type pressure gauge, likely connected to an air control system. this is a
A versatile pressure gauge designed to provide accurate pressure readings in multiple units, essentialfor the safe and efficient operation on of air controlled systems.

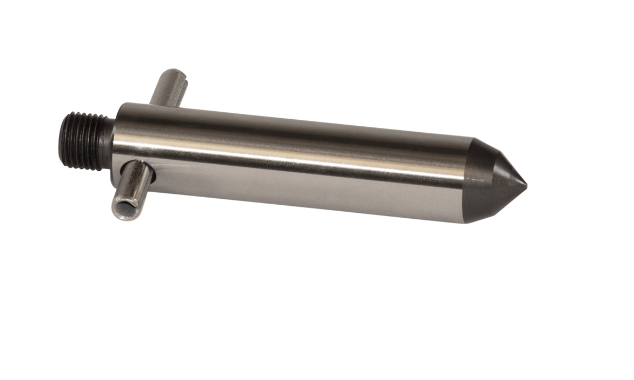

valve poppet or needle, designed to control the flow or pressure of a fluid by precisely opening and closing an orifice (a small opening) within a valve body. Given its robust metallic construction and design, it’s highly likely part of a high-pressure, industrial-grade fluid handling system, possibly for viscous materials. The precision and material quality of this poppet are paramount. Any wear,
Deformation, or manufacturing imperfection, can lead to leaks, inconsistent flow, or premature failure of the valve or regulator it’s part of, which can be costly in industrial processes.
The PCF Metering System provides a precise, continuous flow for sealant and adhesive dispensing. This closed-loop, continuous flow metering and dispensing system offers high accuracy without costly reload times. With PCF material continuously metered and controlled, it provides accurate control with no limitation on shot size. Purpose and Applications:
This is an air motor piston that reciprocates within the cylinder of a Graco NXT 6500 air motor. Its movement, driven by compressed air, generates the power to operate the fluid pump. It’s an
internal part of the motor that is crucial for its operation. Role in Industrial Applications:
The NXT 6500 Air Motor is the driving force behind high-performance Graco fluid pumps. It
is paired with displacement pump sections (like the L200CS or similar) to form complete fluid
transfer and dispense systems used for
The air motor is a highly advanced, pneumatically operated motor designed to power
various industrial fluid pumps, particularly those used for transferring and dispensing viscous, abrasive, or high-pressure materials. It represents a significant advancement over older air motor designs, focusing on efficiency, durability, and user experience.
The P68LCS is a specific model designation for a Graco lower displacement pump section. This is the “wet end” of an industrial pump system, meaning it’s the part that comes into direct contact
with and moves the fluid. It does not include the air motor that powers it, although it’s designed to connect to one.
The MD2 Valve is a high-pressure, durable dispense valve designed for the accurate and controlled applicationof medium- to high-viscosity sealants, adhesives, and similar materials. It’s a critical
component at the “business end” of a fluid dispensing system. “MD2” stands for “Material Dispense 2,” indicating it’s the second generation or a specific model in Graco’s material dispense valve line.

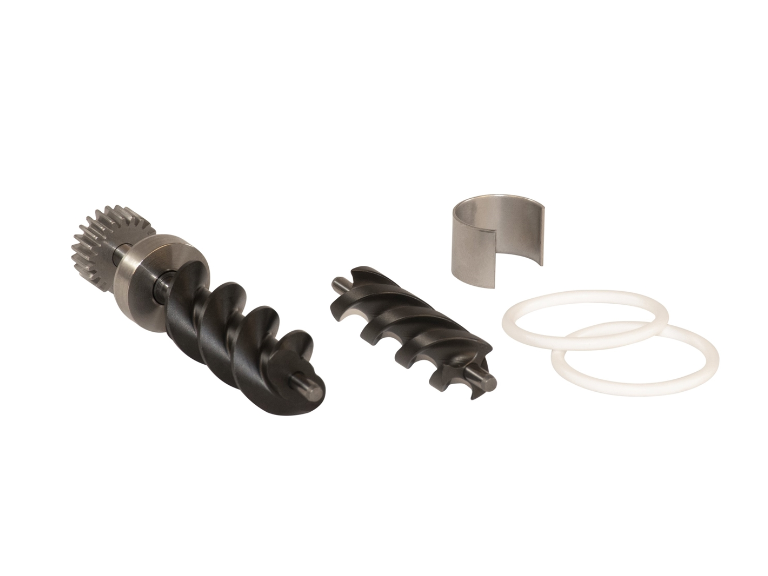

A helical gear flow meter is a type of positive displacement (PD) flow meter. This means it measures flow by repeatedly trapping a known volume of fluid and then releasing it.
High Accuracy: They offer excellent accuracy, especially for high-viscosity fluids.
Good for Viscous Fluids: Their design is particularly well-suited for measuring thick, viscous liquids (like oils, resins, polymers, and glues) that might be difficult for other flow meter types to handle accurately.
used for controlling the pressure of liquids in various industrial applications, particularly those involving spraying or dispensing. It’s a specialized valve designed to maintain a constant output pressure of a fluid, regardless of fluctuations in the inlet pressure or changes in
downstream flow requirements.
This is a high-pressure, stainless steel flow meter with integrated electronics, designed for precision measurement of fluid flow in demanding industrial applications.
High Pressure Rating: A standout feature is its impressive maximum
fluid working pressure:
This high rating indicates it’s designed for applications involving very high-pressure hydraulic systems, process lines, or specialized industrial processes where robust
Equipment is essential.
This diagram is showing part of the Graco Pump Rod Grounding Kit or Rod Safety/PositionSensor Assembly located on the ram follower plate or pump section.
Rod grounding kit for spark prevention (important for ATEX or hazardous area
compliance)
Pump position feedback system to:
o Detect rod travel
o Count strokes
o Trigger ram control logic (up/down ming, material out detection)
The component in the image is a manual
pneumatic push-button valve
It serves as a manual control input for testing or emergency functions in an automated or semiautomated system.
This button manually actuates a pneumatic function such as
Priming
Pump start
Air pilot signal
Override for a solenoid valve
Typical Use
Maintenance mode: manual override of automatic systems
Priming systems: air purge or fluid movement control
This is a manual shut-off valve handle (often referred to as an isolation valve lever)—specifically part of a pneumatic air
control manifold,
Allows the operator to manually open or close the airflow to specific parts of a pneumatic system.
a pneuma c pressure regulator knob, which is part of a compressed air pressure regulator assembly. This knob allows manual adjustment of air pressure within a pneuma c system.
Regulates air pressure by adjustingthe spring tension inside the
pressure regulator.
Usually mounted on a modular pneumatic control system.
This is a pneumatic control manifold system—specifically a Graco air control module used in industrial pumping or metering systems, especially for adhesive and sealant supply systems.
This kind of module is a central air distribution on and control
unit in drum unloader or bulk supply systems like
Graco Supply Systems
Ram and Pump Systems
Bulk Adhesive Dispensing Units
IT CONTROLS:
The air motor pressure (for pumping)
Ram up/down mo on
Follower plate engagement
Safety interlocks and system isolation
